1550nm PM optical delay line
Feature
Unique delay mechanism, Continuous and reliable operation, Wide delay range, High delay accuracy, High reliability and low polarization-dependent loss (<0.1dB), Simple and compact structure

Application
Radar testing and calibration, Phase-controlled antenna array, Optical coherence tomography, Optical interferometry, Fiber optic sensor
Product Consultation
Detailed information
1550nm Single-mode optical delay line

Feature

Unique delay mechanism
Continuous and reliable operation
Wide delay range
High delay accuracy
High reliability and low polarization-dependent loss (<0.1dB)
Simple and compact structure

Application

Radar testing and calibration
Phase-controlled antenna array
Optical coherence tomography
Optical interferometry

Fiber optic sensor


Specification

参数

Parameters

指标

Value

工作波长(nm)

Operation wavelength(nm)

1260-1650,1310-1550,可定制 850,980,1060

1260-1650,1310-1550,Customizable 850,980,1060

校准波长(nm)

Calibration wavelength(nm)

1310-1550



延迟范围

Optical delay range

0~100 ps

0~330 ps

0~700 ps

0~1500ps

分辨率

Distinguishability

1fs

插入耗损

Insertion loss

典型0.8dB,最大1.2dB(0-1500PS耗损≤1.4db)

Typ.0.8dB, max 1.2dB(0-1500PS loss≤1.4db)



 插入损耗变化

Insertion loss variation

±0.25dB 对应0-100PS模块

±0.25dB over entire range for 0-100PS model

±0.35 dB 对应0-330PS模块

±0.35 dB over entire range for 0-330PS model

±0.55 dB 对应0-700PS模块

±0.55 dB over entire range for 0-700PS model

±1.5 dB 对应0-1500PS模块

±1.5 dB over entire range for 0-1500PS model

回波损耗

Return loss

> 55 dB

消光比

Extinction ratio

>18 dB

传输光功率

Transmission optical power

光功率典型 500mW/可定制5W/10W/15W/20W/30WT

yp. 500mW/ can be Customized 5W/10W/15W/20W/30W

工作温度

Operating temperature

0~50℃

储存温度

Storage temperature

-40~65℃

光纤类型

Fiber type

Conning SMF-28,or Fujikura PM Panda fiber



Size (L x W x H)

尺寸 (长 x 宽 x 高)

72.53 x32x 35.5mm   for 100ps model

105x32x 35.5mm     for 330ps model

167.54x32x 35.5mm  for 700ps model

169x 46x 35.5mm    for 1500ps model


Typical delay spectrum

典型延迟谱线1典型延迟谱线2

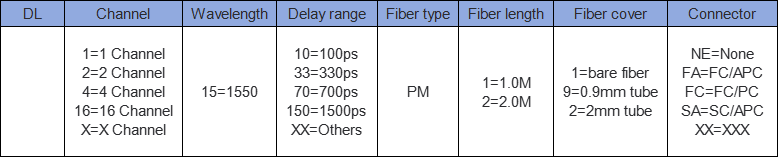

Ordering Info

ZG

延迟范围

Delay

光纤类型

Fiber type

纤长

Fiber length

连接头

Connector



10=100ps

33=330ps

70=700ps

150=1500ps

XX=others

S9=SMF 900um

M5=MMF 50/125/900um

M6=MMF 62.5/125/900um

PM= PM Panda

XX=others

1=1.0m

2=2.0m

X=others

NE=None    FA=FC/APC

FC=FC/PC    SA=SC/APC

SC=SC/PC    ST=ST/PC

LA=LC/APC   LC=LC/PC

XX=others
