Unique delay mechanism，Lower polarization dependent loss(<0.1dB)
Radar testing and calibration，Phased antenna array
Features
Unique delay mechanism
continuous and reliable operation
Wide delay range
High delay accuracy
High reliability
Lower polarization dependent loss(<0.1dB)
Simple and compact structure
Specification

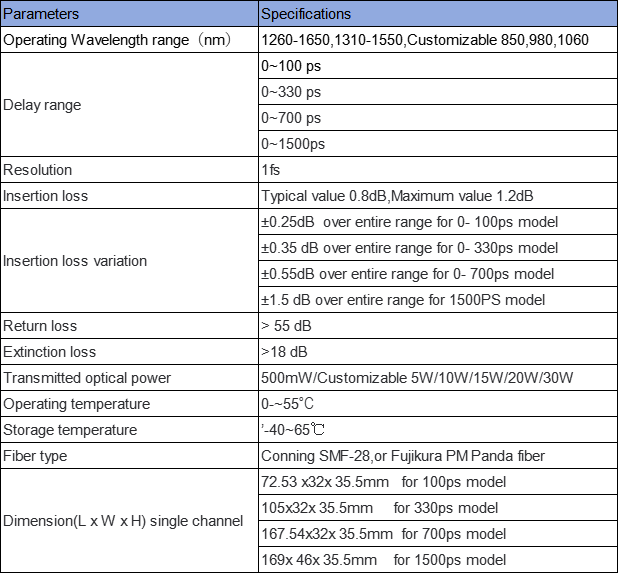

参数 Parameters 指标 Value 工作波长（nm） Operation wavelength（nm） 1260-1650,1310-1550,可定制 850,980,1060 1260-1650,1310-1550,Customizable 850,980,1060 校准波长（nm） Calibration wavelength（nm） 1310-1550 延迟范围 Optical delay range 0~100 ps 0~330 ps 0~700 ps 0~1500ps 分辨率 Distinguishability 1fs 插入耗损 Insertion loss 典型0.8dB,最大1.2dB（0-1500PS耗损≤1.4db） Typ.0.8dB, max 1.2dB（0-1500PS loss≤1.4db） 插入损耗变化 Insertion loss variation ±0.25dB 对应0-100PS模块 ±0.25dB over entire range for 0-100PS model ±0.35 dB 对应0-330PS模块 ±0.35 dB over entire range for 0-330PS model ±0.55 dB 对应0-700PS模块 ±0.55 dB over entire range for 0-700PS model ±1.5 dB 对应0-1500PS模块 ±1.5 dB over entire range for 0-1500PS model 回波损耗 Return loss > 55 dB 消光比 Extinction ratio >18 dB 传输光功率 Transmission optical power 光功率典型 500mW/可定制5W/10W/15W/20W/30WT yp. 500mW/ can be Customized 5W/10W/15W/20W/30W 工作温度 Operating temperature 0~50℃ 储存温度 Storage temperature -40~65℃ 光纤类型 Fiber type Conning SMF-28,or Fujikura PM Panda fiber Size (L x W x H) 尺寸 (长 x 宽 x 高) 72.53 x32x 35.5mm for 100ps model 105x32x 35.5mm for 330ps model 167.54x32x 35.5mm for 700ps model 169x 46x 35.5mm for 1500ps model
Typical delay lines
ordering information

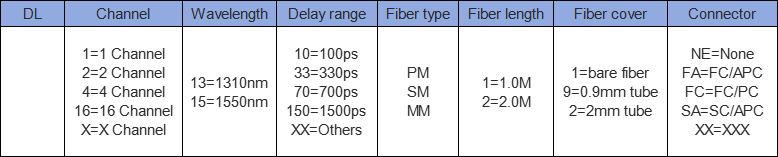

ZG 延迟范围 Delay 光纤类型 Fiber type 纤长 Fiber length 连接头 Connector 10=100ps 33=330ps 70=700ps 150=1500ps XX=others S9=SMF 900um M5=MMF 50/125/900um M6=MMF 62.5/125/900um PM= PM Panda XX=others 1=1.0m 2=2.0m X=others NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC ST=ST/PC LA=LC/APC LC=LC/PC XX=others
