DAS High-speed RF Data Acquisition Boards

Introduction

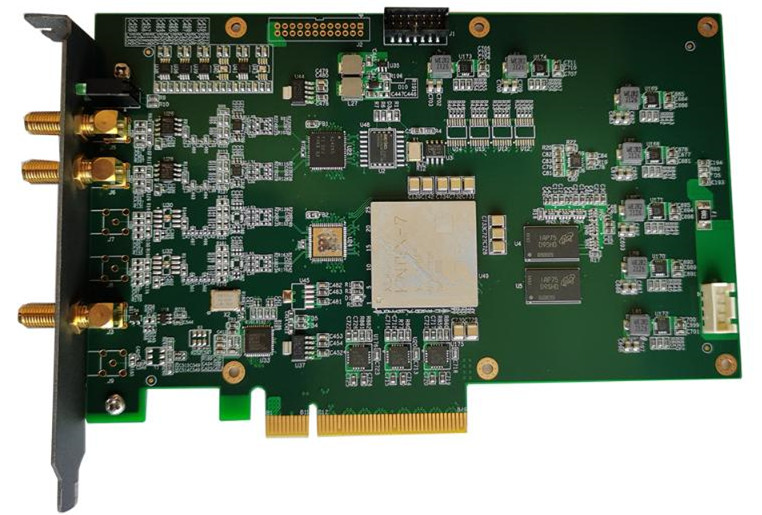

This is a high-speed acquisition board with dual-channel acquisition, 14bits (ADC), 16bits (DAC), PCIEX8, 250MSps and other features. It is equipped with a high-performance FPGA chip, implements a high-speed interface through the JESD204 protocol, and uses a large-capacity cache to support real-time transmission of the entire link. In this case, it can support up to 2GB/s of real-time data transmission. The driver has good compatibility and supports multiple versions of WINDOWS and LINUX.

Feature

14bits dual-channel synchronous real-time acquisition

250MSps sampling rate

AC coupling, 50Ω input impedance

2Vpp input voltage range

90dBc SFDR

PCIEx8 high-speed transmission interface

2Gb DDR3 high-speed data cache

Application

Radar signal acquisition and analysis

Electronic reconnaissance and monitoring

Teaching and training exercises

Software radio equipment development

Broadband signal recording and playback

Wireless communication

Software radio

Electronic countermeasures

Electronic reconnaissance

Specification

on-board algorithm

1、Supports IQ demodulation function
2、Support trigger acquisition
3、FIR filter

Ordering info
