1064nm 10-channel fiber optical delay line: Feature
Unique delay mechanism, Continuous and reliable operation, Wide delay range, High delay accuracy, High reliability

Application
Radar testing and calibration, Phase-controlled antenna array, Optical coherence tomography, Optical interferometry, Fiber optic senso; Product Consultation

Detailed information

1064nm 10-channel fiber optical delay line

Feature

Unique delay mechanism
Continuous and reliable operation
Wide delay range
High delay accuracy

High reliability

Application

Radar testing and calibration
Phase-controlled antenna array
Optical coherence tomography
Optical interferometry

Fiber optic sensor

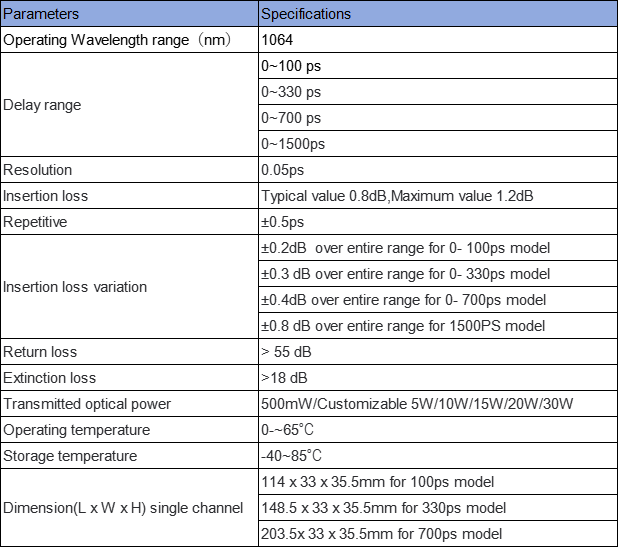

Specification

Ordering Info

Recommended for you: 1064nm 10-channel fiber optical delay line

Operating wavelength (nm) :1064nm, can be customized; Delay range: 0~100ps/0~330ps/0~700ps/0~1500ps; Accuracy: < 0.05ps
