C-band fiber optical delay line
Feature
Unique delay mechanism, Continuous and reliable operation, Wide delay range, High delay accuracy, High reliability and low polarization-dependent loss (<0.1dB), Simple and compact structure

Application
Radar testing and calibration, Phase-controlled antenna array, Optical coherence tomography, Optical interferometry, Fiber optic sensor
Product Consultation
Detailed information
C-band fiber optical delay line

Feature

Unique delay mechanism
Continuous and reliable operation
Wide delay range
High delay accuracy
High reliability and low polarization-dependent loss (<0.1dB)
Simple and compact structure

Application

Radar testing and calibration
Phase-controlled antenna array
Optical coherence tomography
Optical interferometry

Fiber optic sensor

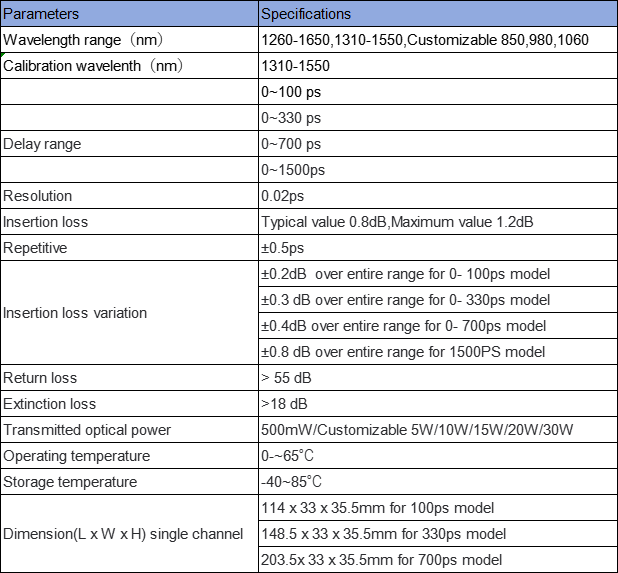

Specification


Typical delay spectrum

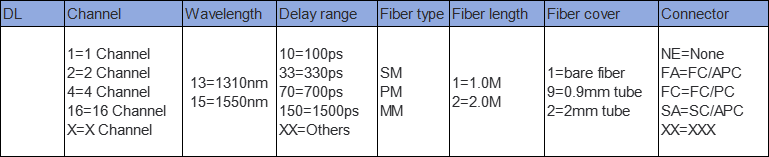

Ordering Info
