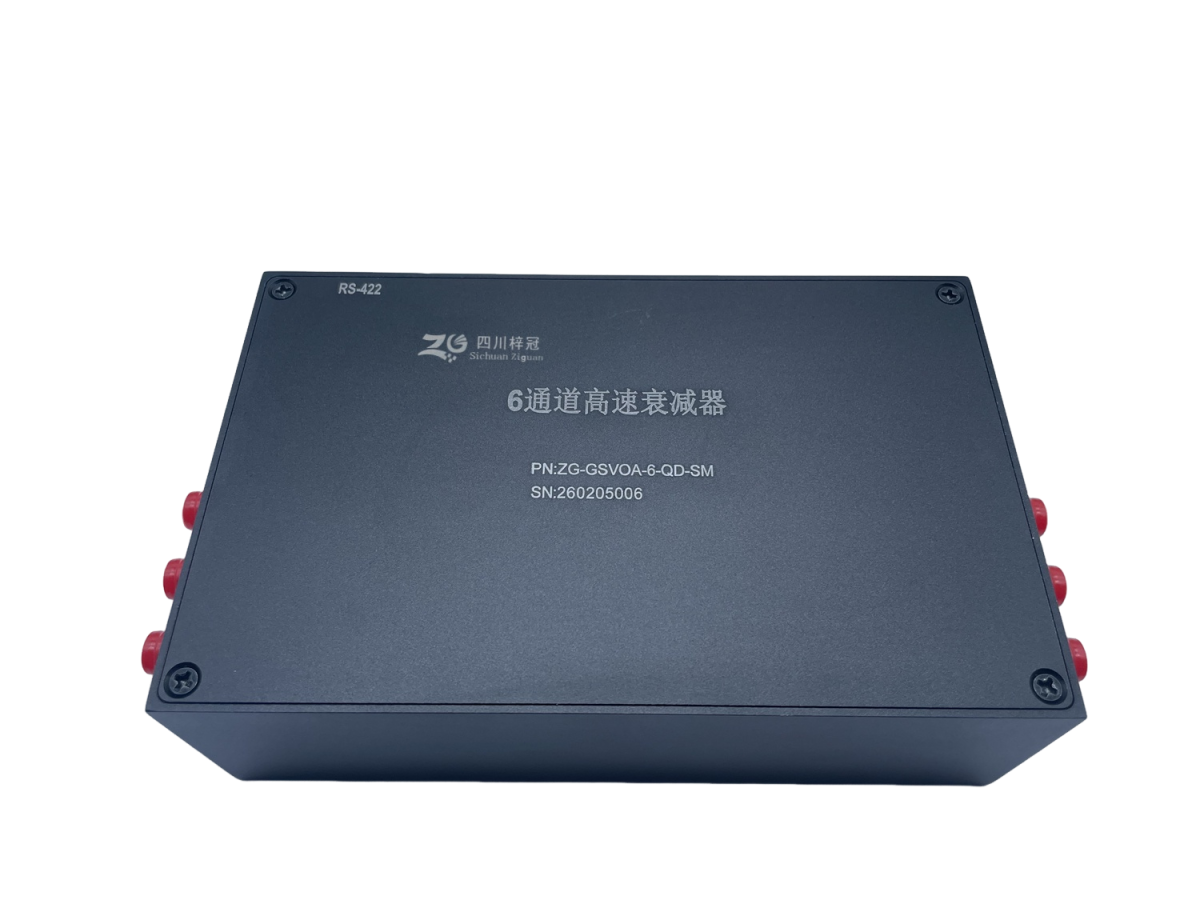

6-Channel High-Speed Silicon-Based VOA

I. Definition

The 6-channel high-speed silicon-based variable optical attenuator (VOA) utilizes thick-film SOI (silicon-on-insulator) silicon photonics technology. It achieves an overall response speed in the microsecond (μs) range—with the internal silicon-based chip itself responding in as little as 300 ns—thereby meeting the requirements for high-speed response, miniaturization, and high reliability in optical transmission and optical sensing systems.

II. Features

High speed

Low polarization dependence

High stability

High repeatability

III. Application

Optical power control in communication networks

Multi-channel optical power balancing

Analog signal modulation

IV. Specification

Parameter	Unit	Min	Typ.	Max	Remarks
Supply Voltage (DC)	V	—	12	—
Operating Wavelength	nm	1520	1550	1570
Number of Channels	pcs	—	6	—	Customizable: 16 / 48
Attenuation Range	dB	—	—	30
Attenuation Step	dB	0.01	0.1	30
Attenuation Accuracy	dB	—	±0.1	±0.3
Response Time	µs	—	20	200
Polarization-Dependent Loss	dB	—	0.3	0.5	At 0–15 dB attenuation
Polarization-Dependent Loss	dB	—	0.5	0.8	At 15–30 dB attenuation
Return Loss	dB	40	45	—
Drive Current	mA	—	20	30	At 20 dB attenuation
Drive Voltage	V	—	3.7	4.2
Acceptable Optical Power	dBm	20	23	—
Fiber Length	m	—	1	—
Fiber Connector Type	—	—	FC/APC	—
Operating Temperature Range	℃	-5	—	70
Storage Temperature Range	℃	-40	—	85

V. PIN definition

Function	Pin	Definition
Power Supply	—	DC +12 V (±15%)
12-Pin Parallel Port	Pin 1	CLK
	Pin 2	DATA0
	Pin 3	DATA1
	Pin 4	DATA2
	Pin 5	DATA3
	Pin 6	GND
	Pin 7	DATA4
	Pin 8	DATA5
	Pin 9	DATA6
	Pin 10	DATA7
	Pin 11	READY
	Pin 12	ACK

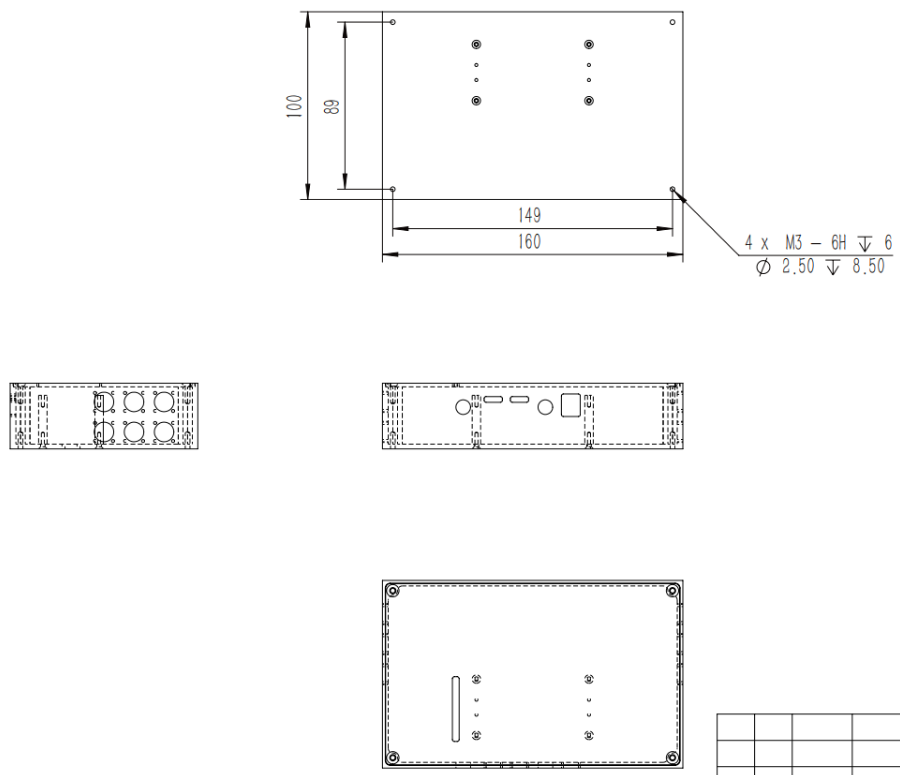

VI. Dimension

VII. Ordering info

ZG-ADJ-VOA	A	B	C	D
	Year of Production	Channel no.	Silicon-based	Hardware version
	25M	6/16/48	SOI	A
