RF microwave power amplifier 24-29.5 GHz is mainly used in millimeter wave communication, radar detection, microwave measurement, high-speed data transmission and other fields
1、RF Microwave Power Amplifier 24-29.5 GHz Basic Parameters(Features) Frequency Range:24-29.5 GHz Connectors:IN:2.92-F(female);OUT:2.92-F(female) Model:ZGPA-24-29.5-G30P25K Gain:30 dB typ Psat：25 dBm typ Power Supply Voltage:+24 V/255mA 2、Advantages of RF microwave power amplifier at 24-29.5 GHz 1.High frequency band coverage:The high frequency band coverage of 24-29.5 GHz enables the power amplifier to be suitable for high-frequency systems such as millimeter wave communication and radar detection,meeting different communication and detection requirements. 2.High power output:capable of outputting high power levels,ensuring the stability and reliability of signals during transmission. 3.Low distortion:Advanced circuit design and electronic components are used to ensure high signal quality and low distortion rate of the amplifier output,improving communication quality. 4.High efficiency:It can convert input signals into output signals with high efficiency,reduce energy consumption and heat generation,and extend the service life of equipment.
3、Main performance indicators of RF microwave power amplifier 24-29.5 GHz(Electrical Specifications)
Parameters
Min
Typ
Max
Units
Frequency
24-29.5
GHz
Gain
-
30
-
dB
Gain Flatness
-
±2.0
-
dB
Psat
-
25
-
dBm
Input VSWR
-
1.8
-
:1
Characteristic Impedance
50
ohm
Input Power (CW)
-
-
+5
dBm
Voltage
24
V
Current
255
mA
Operating Temperature
-40
+55
℃
Storage Temperature
-40
+85
℃
Weight
93
g

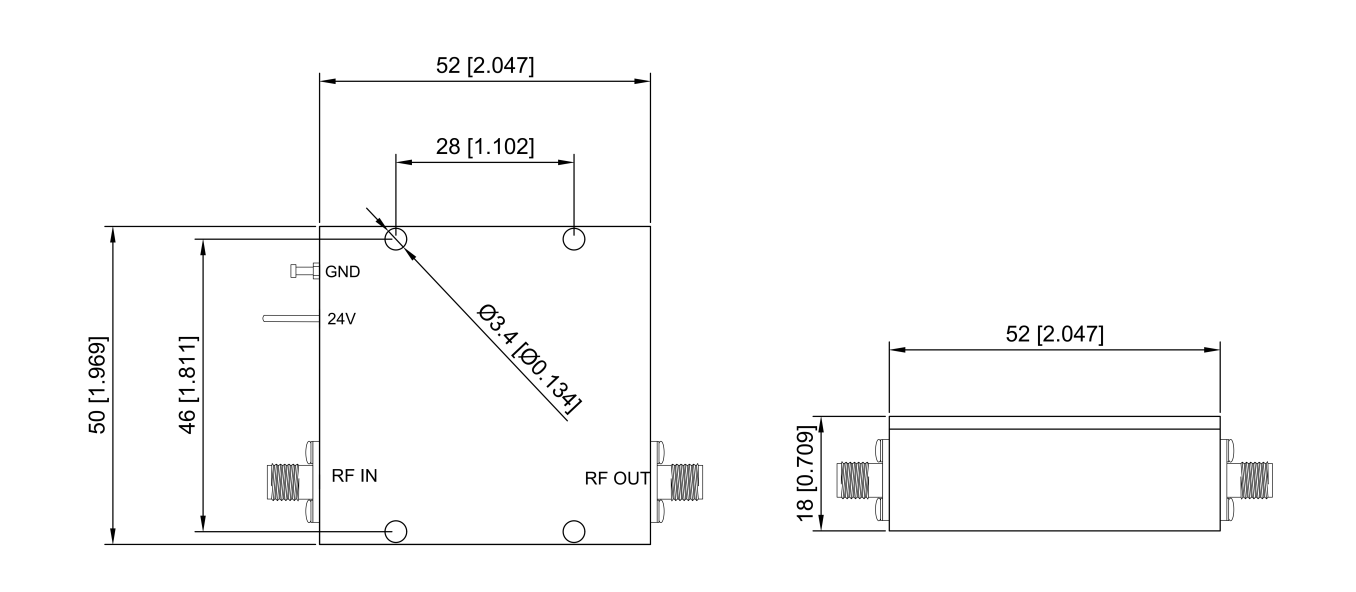

4、Outline Drawing of RF Microwave Power Amplifier 24-29.5 GHz Unit:Millimeters/Inch
5、RF Microwave Power Amplifier 24-29.5 GHz Extended Data 1、Working principle of RF microwave power amplifier 24-29.5 GHz The working principle of a 24-29.5 GHz power amplifier is based on the amplification characteristics of electronic components,and its core component is usually a high-performance millimeter wave transistor,such as GaAspHEMT(pseudo high electron mobility transistor).When the input signal is applied to the input terminal of the power amplifier,the millimeter wave transistor amplifies the signal according to its strength and frequency,and outputs the amplified signal to the load. In order to achieve efficient power amplification,24-29.5 GHz power amplifiers typically adopt a multi-stage amplification structure,including an input stage,an intermediate stage,and an output stage.The input stage is responsible for receiving and preprocessing the input signal,the intermediate stage further amplifies the signal,and the output stage is responsible for transmitting the amplified signal to the load.In addition,in order to reduce distortion and improve efficiency,power amplifiers will also use techniques such as matching networks and negative feedback. 2、Application area of RF microwave power amplifier 24-29.5 GHz 1.Millimeter wave communication:such as 5G millimeter wave base stations,satellite communication systems,etc.,to improve signal coverage and transmission quality. 2.Radar detection:used in meteorological observation,military reconnaissance,traffic monitoring and other fields to improve the detection range and resolution of radar systems. 3.Microwave measurement:used for testing equipment such as microwave network analyzers and spectrum analyzers,providing stable signal output and measurement accuracy. 4.High speed data transmission:In fields such as data centers and cloud computing,24-29.5 GHz power amplifiers can be used to achieve high-speed data transmission and communication. 3、Manufacturing advantages of Sichuan Ziguang Optoelectronics RF microwave power amplifier at 24-29.5 GHz Sichuan Ziguan Optoelectronics Technology Co.,Ltd.,as a high-tech enterprise engaged in the research and development,design,production,and sales of optical communication equipment and chips,has significant advantages in the production and manufacturing of 24-29.5 GHz power amplifiers 1.Technological Leadership:Ziguang Optoelectronics has a research and development team composed of industry experts,dedicated to technological innovation and product development of millimeter wave frequency band power amplifiers.The company adopts advanced production processes and testing equipment to ensure that each amplifier has excellent performance and stability. 2.Excellent Quality:Ziguang Optoelectronics strictly controls the procurement of raw materials and production process to ensure that the quality of products reaches the international advanced level.The company has passed ISO9001 quality management system certification,providing customers with reliable quality assurance. 3.Customized services:Ziguang Optoelectronics provides customized solutions for specific applications to meet customers'personalized needs.Whether in the fields of millimeter wave communication,radar detection,or microwave measurement,Ziguang Optoelectronics can provide the most suitable power amplifier products. 4.After sales guarantee:Ziguang Optoelectronics has established a comprehensive after-sales service system to provide customers with timely and professional technical support and maintenance services.The company has an experienced after-sales service team that can quickly respond to customer needs and issues,ensuring a worry free experience for customers during use.
