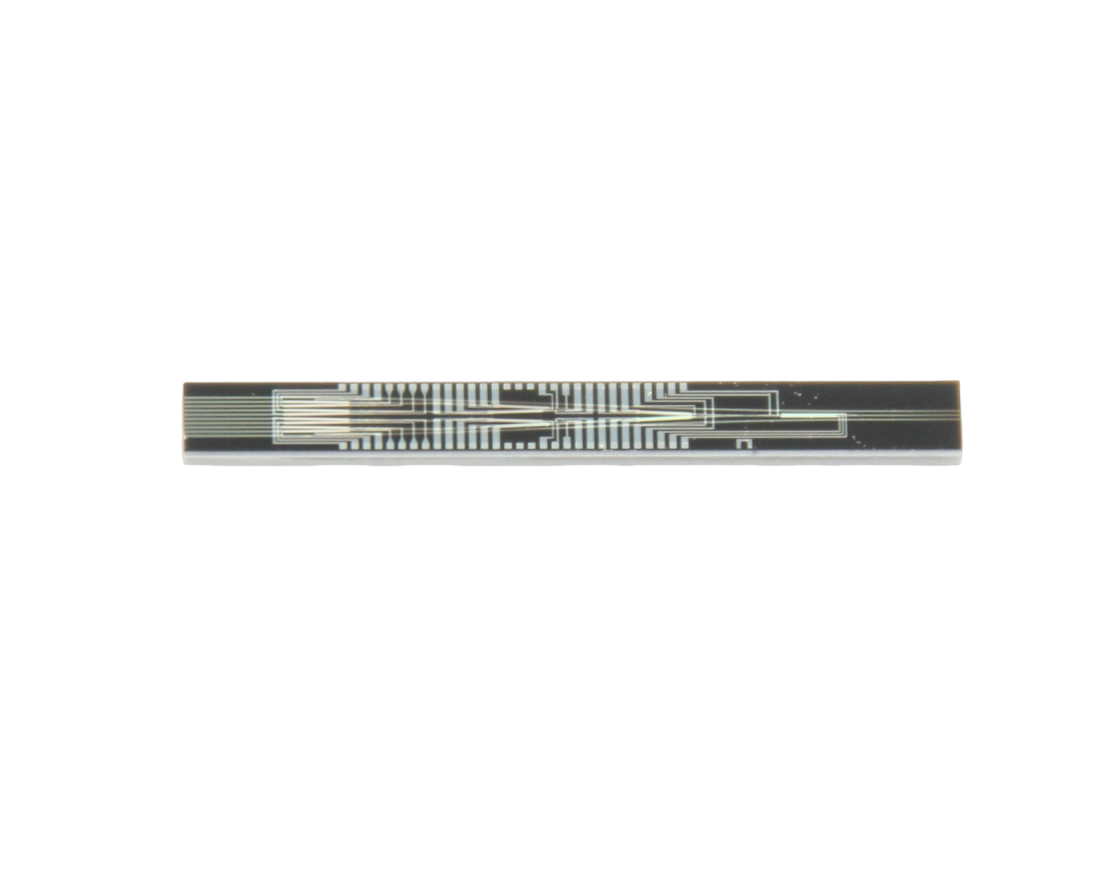

SOI high-speed optical switch 1X8

Silicon photonic chips are used for high-speed optical switches. Their principle is similar to demux, which divides a single path of light into multiple paths, and only selects one path at a time.

The current design comprehensively considers the maturity of the process, integration difficulty, and flexibility. In Sample A1, it is decided to adopt a pure optical fiber modular solution, and one module is in the form of 1x8. The input and output of the optical switch use optical fiber/optical fiber array. Purchase modular products, that is, already packaged modules with optical fibers. The module can be directly used by welding on the PCB.

Feature

Multi Channel

Highly integrated chip

High speed response

Application

Fiber optic sensing

Fiber optic communication

Fiber optic network monitoring and protection

LiDAR

Specification

Electrical parameters

Chip dimension
