1560nm fiber optical delay line
Feature
Unique delay mechanism, Continuous and reliable operation, Wide delay range, High delay accuracy, High reliability and low polarization-dependent loss (<0.1dB), Simple and compact structure

Application
Radar testing and calibration, Phase-controlled antenna array, Optical coherence tomography, Optical interferometry, Fiber optic sensor
Product Consultation
Detailed information
1560nm fiber optical delay line

Feature

Unique delay mechanism
Continuous and reliable operation
Wide delay range
High delay accuracy
High reliability and low polarization-dependent loss (<0.1dB)
Simple and compact structure

Application

Radar testing and calibration
Phase-controlled antenna array
Optical coherence tomography
Optical interferometry

Fiber optic sensor

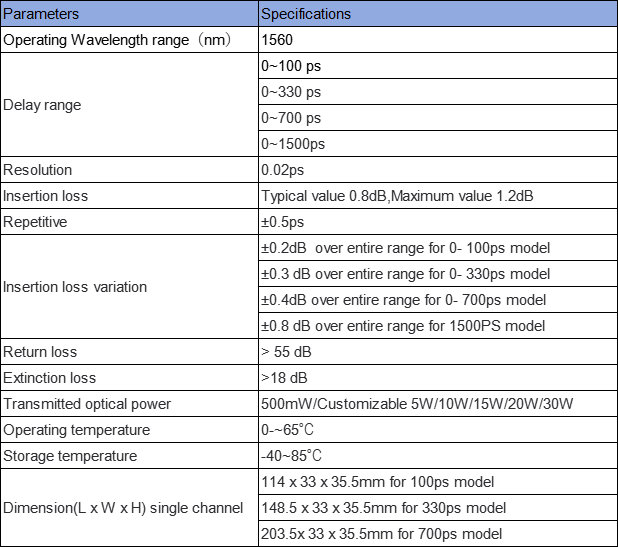

Specification



Typical delay spectrum

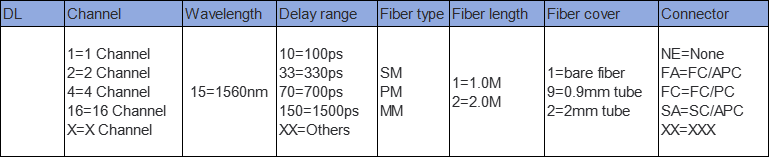

Ordering Info
