Definition
The 1030nm DFB (Distributed Feedback) laser is a pulsed semiconductor laser with a peak wavelength of 1030 nanometers (nm) and employs a distributed feedback structure. Its operating principle is based on a distributed feedback mechanism, which allows for the precise control of grating parameters and pulse injection conditions to achieve high peak power and precisely controlled wavelength laser pulses.
Feature
High peak power
Narrow pulse width
Precise wavelength control
High PER
Fiber optic coupling design

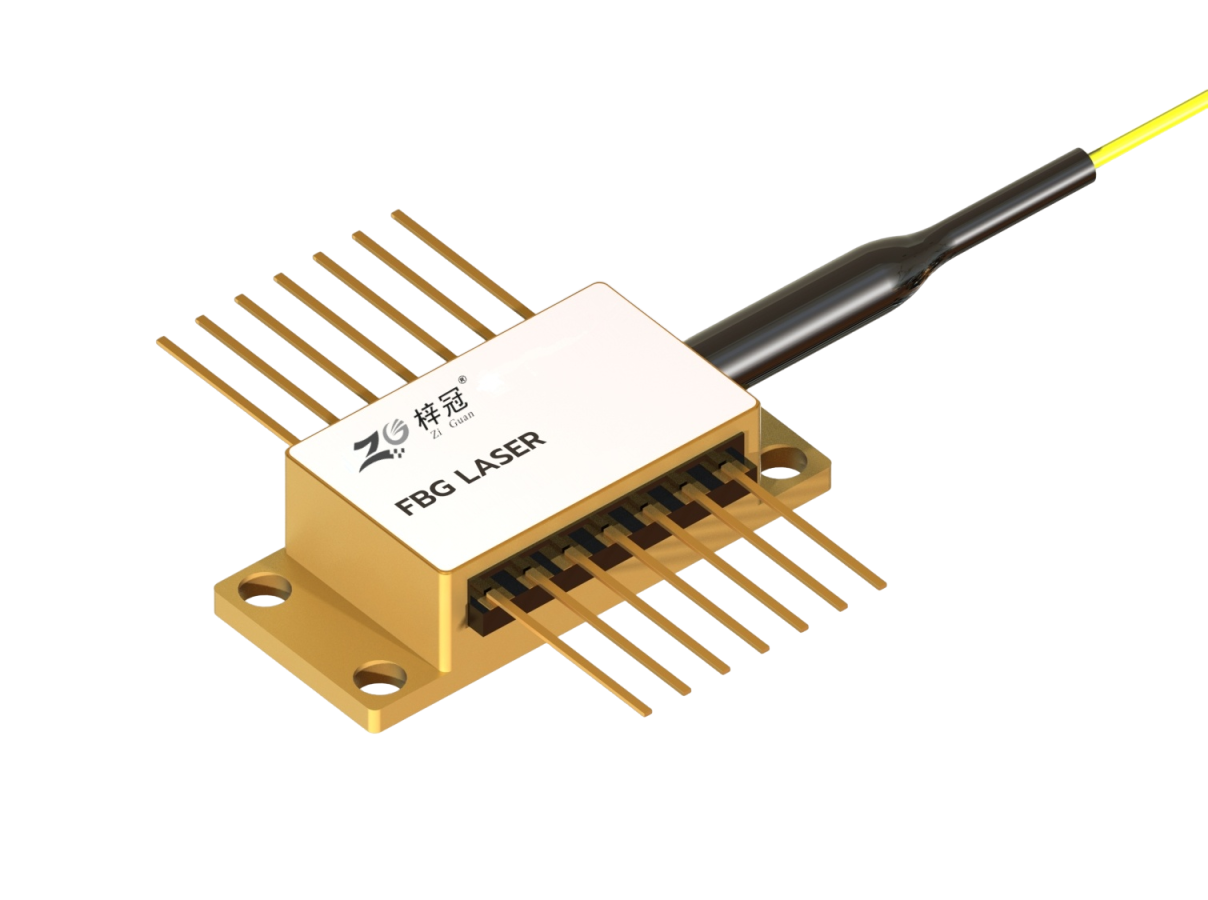

7-pin BTF package with RF connector (optional)
Application
Optic communication
Device calibration
LiDAR
Spectral analysis
Fiber laser marking
Specification
Recommended operating conditions
Parameters | Min | Typ | Max | Unit | Note |
Chip temperature | 20 | 25 | 30 | ℃ |
|
Peak drive voltage in pulse mode |
|
| 42 | V |
|
Peak forward current in pulse mode |
|
| 2 | A |
|
Output peak power in pulse mode |
|
| 300 | mW |
|
Pulse width (FWHM) of drive signal @ pulse mode |
| 170 | 400 | ps |
|
Pulse repetition rate @ pulse mode |
| 10 |
| MHz |
|
Forward current @ DC mode | 20 |
| 220 | mA |
|
Output power @ DC mode | 5 |
| 50 | mW |
|
Pulse characteristic
Parameters | Min | Typ | Max | Unit | Note |
Output peak power | 250 | 300 |
| mW |
|
Pulse width of optical signal (FWHM) |
| 50 | 70 | ps |
|
Peak wavelength (selected by the customer) | 1015 |
| 1125 | nm | Accessibility can be achieved within the wavelength tolerance range when the pulse power is greater than 250 milliwatts.。 |
Peak wavelength tolerance |
| ±1 |
| nm |
|
Bandwidth (at -10dB level) |
| 0.2 |
| nm |
|
CW characteristic
Parameters | Min | Typ | Max | Unit | Note |
Output power |
| 50 |
| mW |
|
Forward voltage |
| 1.7 |
| V |
|
Threshold current |
| 40 |
| mA |
|
Peak wavelength | 1015 |
| 1125 | nm |
|
Peak wavelength tolerance |
| ±1 |
| nm |
|
Wavelength temperature tuning property |
| 100 |
| pm/℃ |
|
Wavelength current tuning property |
| 2 |
| pm/mA |
|
Side mode suppression ratio (SMSR) |
| 50 |
| dB |
|
Polarization extinction ratio (PER) |
| 18 |
| dB |
|
Polarization degree |
| TE |
|
|
|
Absolute maximum rating
Parameters | Min | Max | Unit |
Output peak power @ pulse mode (< 1 nanosecond pulse width, < 10% duty cycle) |
| 500 | mW |
Peak forward current in pulse mode (< 1 ns pulse width, < 10% duty cycle) |
| 2000 | mA |
Forward current @ DC mode |
| 250 | mA |
Output power in CW mode |
| 150 | mW |
Reverse voltage |
| 2 | V |
TEC current |
| 3 | A |
TEC voltage |
| 4 | V |
Chip operating temperature | 5 | 40 | ℃ |
Shell operating temperature | 0 | 70 | ℃ |
Storage temperature | -40 | 85 | ℃ |
Pin soldering temperature (up to 10 seconds, maximum shell temperature 120°C) |
| 300 | ℃ |
Typical pulse performance(reference only)
Typical CW performance(reference only)
Thermistor specifications
Parameter | Specification | Unit |
Type | NTC |
|
Resistance @ 25℃ | 10±0.1 | kOhm |
Beta 25-85℃ | 3435±1% | K |
Fiber specifications
Parameters | Value | Value | Unit |
Fiber type | HI1060 | PM980 |
|
Numerical aperture (typical value) | 0.14 | 0.12 |
|
Cut-off wavelength | 920±50 | 900±70 | nm |
Mode field (core) diameter | 6.2±0.3@1060nm | 6.6±0.3@1060nm | µm |
Cladding diameter | 125±1 | 125±1 | µm |
Coating (buffer) diameter | 245±15 | 245±15 | µm |
Casing (optional) | 900 | 900 | µm |
Connector | FC/APC | FC/APC |
|
Key | narrow | narrow |
|
Dimension
Ordering info
ZG | A | B |
Output power | Peak wavelength | |
250=250mW 300=300mW XX=others | 1015=1015nm 1030=1030nm 1125=1125nm XX=others |
