Definition

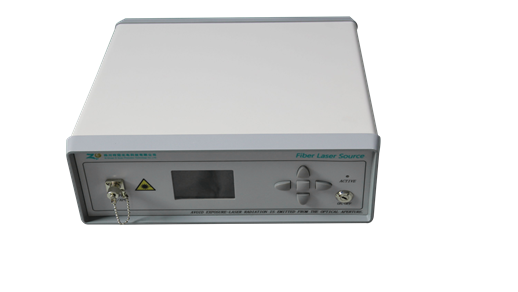

This laser is based on an all-fiber femtosecond laser architecture and adopts a compact modular design. It can provide a total power of over 6W, a minimum pulse width of 150fs, and a single pulse energy of over 6μJ, making it suitable for industrial 24/7 production needs and cutting-edge scientific research.
Feature
Miniaturized design
Total power > 6W
Ultra-short pulse width
High single-pulse energy
Adjustable repetition frequency
Application
Pump OPO
Material modification
Fiber grating fabrication
Compatible with SHG/THG modules
Specification
Parameter | Unit | Value |
Central wavelength | nm | 1035 |
Total power | fs | >6 |
Pulse width | mW | 150fs-400fs |
Repetition frequency | nm | 25kHz-5MHz adjustable |
Power stability | MHz | <1% |
Single pulse energy |
| >6μJ |
Peak power | dB | >15MW |
Spot quality |
| M2<1.3 |
Synchronous output | V | SMATTL signal |
Control mode | ℃ | RS232 or DB25 |
Power supply |
| AC 100V-240V 50/60Hz |
Cooling |
| Air-cooled/Water-cooled (Additional assembly) |
