Definition
The laser integrates the latest femtosecond laser technology, utilizes high-performance erbium-doped fiber as the working medium, and combines high-precision dispersion compensation technology to achieve stable output of 1560nm femtosecond pulsed laser.
Feature
High pulse peak power
Narrow pulse width
Fully self-starting
Stable and maintenance-free
Application
Optical frequency comb
Ultra-continuum spectrum
Terahertz (THz)
Specification
Parameter | Unit | Type | Note |
Central wavelength | nm | 1560±30 | customize |
Spectral width | nm | ≥60 | Overall width |
Pulse width | fs | <90（typ. 60fs） | customize |
Average output power | mW | ≥100 |
|
Power instability | - | < ±1% | @6hours |
Repetition frequency | MHz | 80~100 | customize |
Repetition frequency instability | Hz | <100 | @1hour |
Single pulse energy | nJ | ≥1 |
|
Polarization state | - | Linear polarization |
|
Fiber and connector | - | PM1550 fiber，FC/APC | Slow axis alignment |
Warm-up time | min | < 0.5 |
|
Electrical parameter
Parameter | Benchtop | Module |
Control method | Touch screen/RS232 | Touch screen/RS232 or USB |
Synchronous signal interface | SMA | SMA |
Power supply | AC 100~240V, 30W | DC 12V, 0W |
Size or code | B2: 300×398×112.5mm | 200×145×65mm |
Operation temperature | 5 ~ 35°C | |
Operation humidity | 0~70% | |

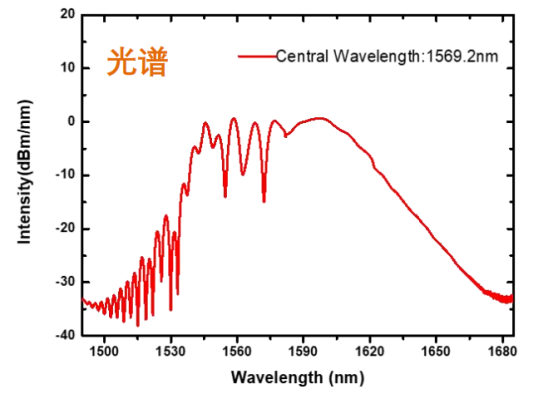

Spectrogram

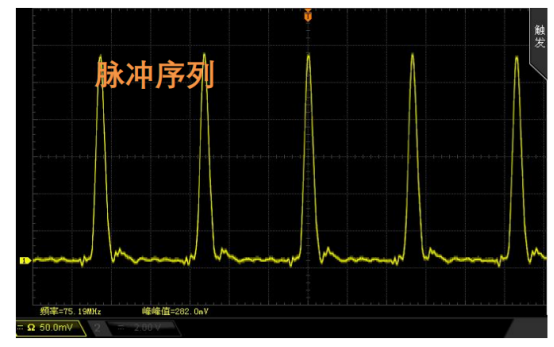

Pulse sequence

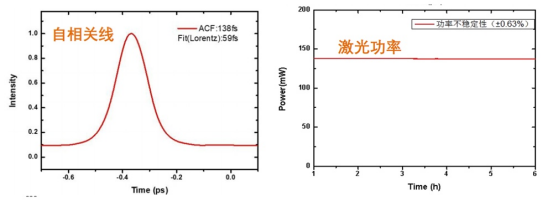

Autocorrelation line and laser power
Ordering info
ZG | CWL(nm) | Pulse width(fs) | Average Power(mW) | Repetition frequency (MHz) | Output | Package |
1560 | 90 | 100 | 80/100 | PM fiber | Benchtop/ Module |
