High power femtosecond laser

High power femtosecond laser: The laser integrates the latest femtosecond laser technology, utilizes high-performance rare-earth optical fiber as the working medium, and combines high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5μm band femtosecond pulse laser with an average power of 1 watt.; Product Consultation

Detailed information

Definition

The laser integrates the latest femtosecond laser technology, utilizes high-performance rare-earth optical fiber as the working medium, and combines high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5μm band femtosecond pulse laser with an average power of 1 watt.

Feature

High power

Narrow pulse width

Fully self-starting

Stable and maintenance-free

Application

Optical frequency comb

Ultra-continuum spectrum

Terahertz (THz)

Specification

Parameter	Unit	Type		Note

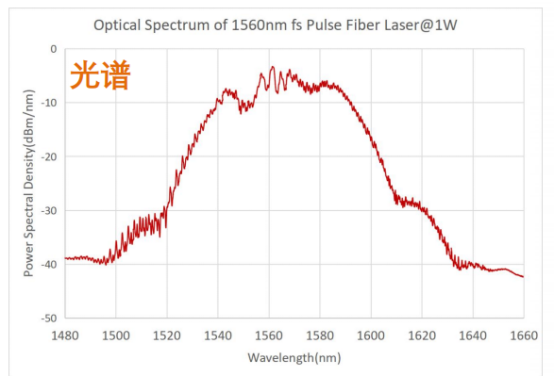

Central wavelength	nm	1560±10		customize

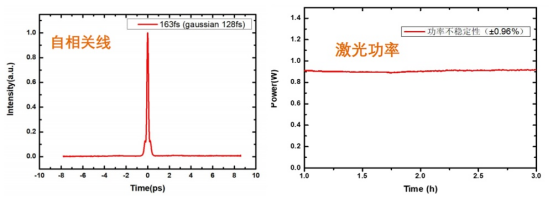

Pulse width	fs	≤120		customize
Average power	mW	≥800	≥1000
Power instability	-	< ±1%		6hours@25°C

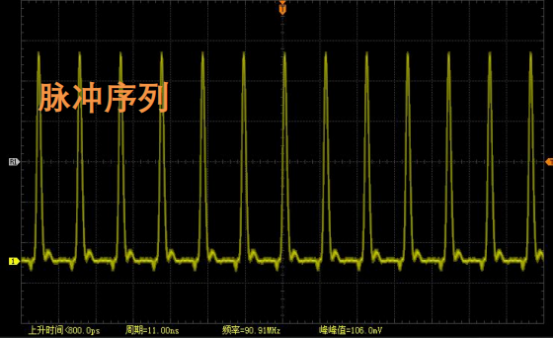

Repetition frequency	MHz	80	100	customize
Single pulse energy	nJ	>10
Laser polarization state	-	Linear polarization，PER>20dB		Vertical polarization
Laser output mode	-	Space light
Beam quality	-	M²<1.2		TEM00
Beam diameter	mm	≤1.6		* 1/e² Waist Diameter
Beam divergence angle	mrad	<1.5
Warm-up time	min	<0.5

Electrical parameter

Parameter	Spec
Control method	Touch screen/RS232
Synchronous signal interface	SMA
Power supply	AC 100~240V , ＜40W
Size or code	B2: 300×398×112.5mm
Net weight	≤ 5 kg
Operation temperature	5 ~ 35°C
Operation humidity	0~70%
