Definition

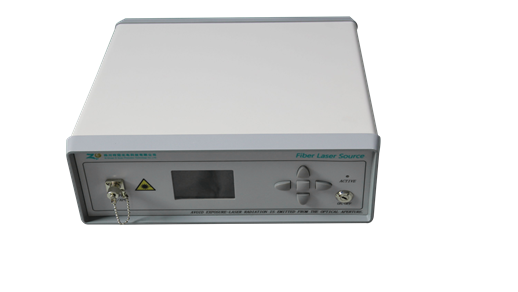

The laser is a product based on an all-fiber femtosecond laser architecture. It features a modular design and is specifically developed to meet the demands of 24/7 industrial production and cutting-edge scientific research. This high-power, ultrafast fiber laser provides stable laser output, satisfying the needs of various precision machining and scientific research applications. Specific parameters include a total power of 40W, a minimum pulse width of 200 fs, a pulse energy of 80 μJ, and a repetition rate that is flexibly adjustable between 25 kHz and 5 MHz..
Feature
Average power: 40W
Pulse width: 300fs-10ps adjustable (200fs version available)
Repetition frequency: 25kHz-5MHz adjustable
Single pulse energy: 80uJ
Peak power: 200MW
Number of bursts: Adjustable from 1 to 10
Application
Glass welding
Refractive index changes in transparent materials
Integrated photonic materials fabrication
Two-photon micro/nano fabrication
Fiber grating fabrication
Thin film material cutting and drilling
Specification
Central wavelength | Unit | Value |
Total power | nm | ~1030±5 |
Repetition frequency | W | 100 |
Power stability | kHz | 25kHz-5MHz adjustable |
Single pulse energy |
| <2% |
Number of bursts | uJ | 300 |
Burst pulse group energy | Unit | 1-10unit programmable |
Peak power | mJ | Up to 2mJ |
Pulse width | GW | ~1GW |
Spot quality | fs | ~300fs-6psadjustable (200fs version is available) |
Spot diameter |
| M2<1.3 |
Spot divergence angle (full angle) | mm | ~3mm(1m away from the output port) |
Polarization direction |
| <2mrad(IS0-11146-1 definition) |
Synchronous output |
| linear polarization(S) |
Control mode |
| SMATTL signal |
Power supply |
| RS232 or DB25 |
Central wavelength | V | AC100V-240V50/60Hz Rated output power≥2000W |
Total power | KG | ~25KG |
Repetition frequency | mm | 1054x304x162 |
Ordering info
ZG | CWL | Total power | Single pulse energy | Peak power | Pulse width |
1035nm | 40W 20W
| 80uJ 40uJ | 200mW 100mW | 200fs 300fs~10fs (adjustable) |
