Definition
This laser is an ultrashort pulse laser based on fiber mode-locking technology, with an output wavelength of 1030nm±10nm. The 1030nm band is located in the near-infrared region, close to the gain bandwidth center of ytterbium ions (Yb³⁺), exhibiting high quantum efficiency, low quantum defects, and good thermal management characteristics, making it suitable for high-power, high-stability applications. With a pulse width <200 fs, it falls into the ultrashort pulse category, enabling high peak power and low thermal damage, making it suitable for nonlinear optical processes (such as two-photon absorption and harmonic generation).
Feature
Customizable wavelength
High peak power
Linear polarization
Diffraction-limited beam (M² < 1.3)
Application
Nonlinear optics
Ultra-fast optics
Harmonic imaging
High-speed optical sampling
LiDAR
Specification
Parameter | Unit | Value |
Central wavelength | nm | 1030±10 |
Pulse width | fs | <200 |
Repetition frequency | MHz | 25 |
Average power | mW | >100 |
Power stability |
| <0.5% RMS (12hrs@25℃) |
Single pulse energy | nJ | >4 |
PER | dB | >20 |
Beam quality |
| M²<1.2 |
Output |
| Space collimation output |
Power supply | V | 12 VDC |
Operating temperature | ℃ | 15-35 |
Operating humidity |
| 20~80% (non-condensing) |
Dimension | mm | 260×194×115 |
Cooling method |
| Air-cooled |

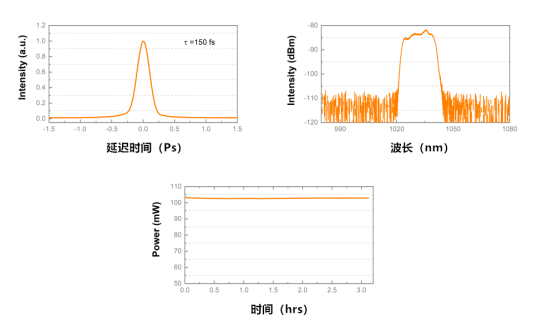

Test data
