780nm femtosecond laser

780nm femtosecond laser: The laser uses the latest femtosecond laser technology and optical frequency doubling technology to achieve stable output of 780nm femtosecond pulsed laser.; Product Consultation

Detailed information

Definition

The laser uses the latest femtosecond laser technology and optical frequency doubling technology to achieve stable output of 780nm femtosecond pulsed laser.

Feature

Narrow pulse width

High peak pulse power

Fully self-starting

Stable and maintenance-free

Application

Multiphoton imaging

Two-photon absorption

Ultrafast laser

Specification

Parameter	Unit	Type	Note
wavelength	nm	780±10
Spectral width	nm	20
Pulse width	fs	<120	customize
Output power	mW	>30	customize
Power instability	-	< ±1%
Repetition frequency	MHz	80	customize
Repetition frequency instability	Hz	<100	@1hour
Single pulse energy	nJ	> 0.4
Polarization state	-	linear polarization
Output mode	-	Space light
Warm-up time	min	< 1

Electrical parameter

Parameter	Spec
Control method	Touchscreen /RS232
Synchronous signal interface	SMA
Power supply	AC 100~240V , 30W
Size or code	B4: 300(W)×398(D)×112.5(H)mm
Operating temperature	5 ~ 35°C
Operating humidity	0~70%

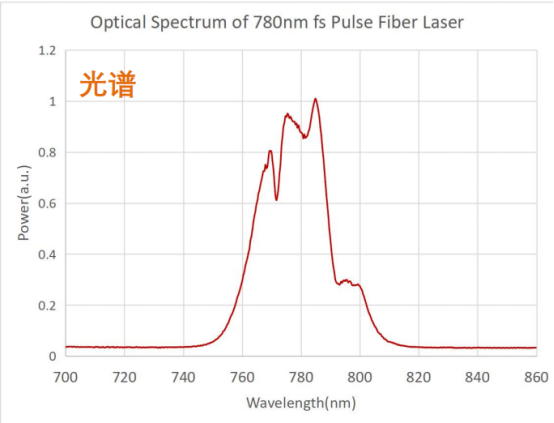

Spectrogram

Ordering info

CWL(nm)

Pulse width(fs)

Power(mW)

Repetition frequency

(MHz)

Output

Package

780

50/100/200/500

1/10/50/100

80/100

FS=free space light

Benchtop
