Definition
The laser integrates the latest femtosecond laser technology, utilizes high-performance erbium-doped fiber as the working medium, and combines high-precision dispersion compensation technology to achieve stable output of high repetition rate femtosecond pulsed laser in the 1560nm band.
Feature
High repetition rate
Narrow pulse width
Fully self-starting
Stable and maintenance-free
Application
Optical frequency comb
Ultracontinuum spectrum
Terahertz (THz)
Specification
Parameter | Unit | Type | Note |
Wavelength | nm | 1560±10 | customize |
Spectral width | nm | 20 |
|
Pulse width | fs | 100 ~ 500 | customize |
Output power | mW | 1 ~ 200 | customize |
Power instability | - | < ±1% |
|
Repetition frequency | MHz | 200/300/500/1000 | customize |
Repetition frequency instability | Hz | <300 |
|
Single pulse energy | nJ | 0.1~1 |
|
Polarization state | - | linear polarization |
|
Fiber and connector | - | PM1550 ，FC/APC | Slow axis alignment |
Warm-up time | min | < 0.5 |
|
Electrical parameter
Parameter | Benchtop | Module |
Control method | Touch screen/RS232 | Key/RS232 or USB |
Synchronous signal interface | SMA | SMA |
Power supply | AC 100~240V , 30W | DC12V, <20W |
Size or code | B2: 255×285×115mm | M65：200×145×65mm |
Operating temperature | 5 ~ 35°C | |
Operating humidity | 0~70% | |

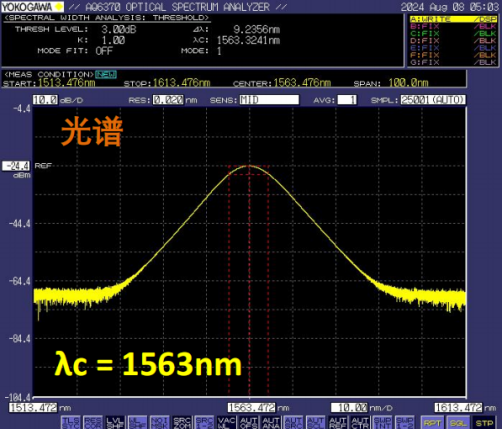

Spectrogram

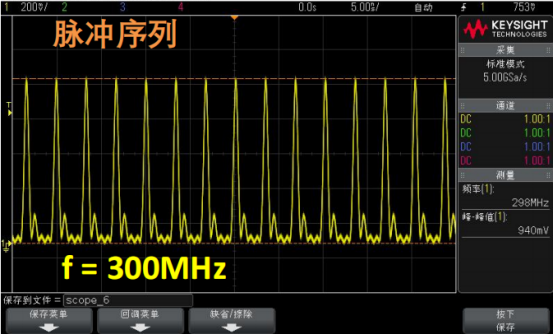

Pulse sequence

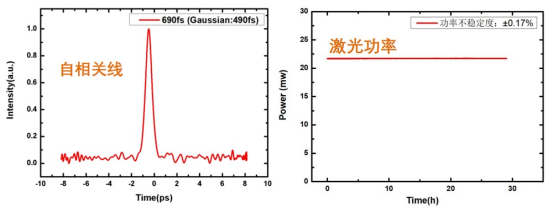

Autocorrelation line and laser power
Ordering info
ZG | CWL(nm) | Pulse width(fs) | Power(mW) | Repetition frequency (MHz) | Output | Package |
1560 | 50/100/200/500 | 10/50/100 | 200/300/500/1000 | PM | Benchtop/module |
