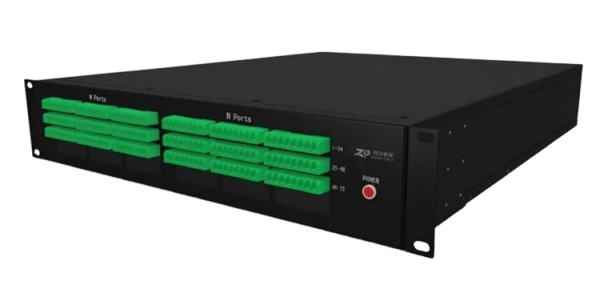

Definition
The 64X64 optical switch matrix is a large-scale optical switch device with 64 input ports and 64 output ports. It can achieve non-blocking switching of optical signals between any input port and any output port, and supports high-speed and large-capacity optical signal transmission and switching.
Feature
Non-blocking circuit switch
Low insertion loss
Fast switching
Long lifespan
Excellent optical stability and repeatability
User-friendly graphical user interface
Application
Optical network management
Data center interconnection
AI network
Specification
Operation environment
Parameter | Min | Max | Unit | Remarks |
Operating Temperature | 5 | 45 | °C |
|
Storage Temperature | -40 | 70 | °C |
|
Operating Relative Humidity | 5 | 95 | % | Under non-condensing conditions, the moisture content shall not exceed the industrial standard of 0.024 kg of water per kg of dry air |
Storage Relative Humidity | 5 | 95 | % |
Specification
Parameters | Spec | Unit | Note |
Number of channels | 64x64 |
|
|
Operation wavelength range | 1260-1660 | nm |
|
Typical insertion loss | 1.5 | dB |
|
Maximum insertion loss | 3.0 | dB |
|
Crosstalk | <-50 | dB |
|
Return loss | >45 | dB |
|
Connection stability | ±0.2 | dB | Stability and repeatability are measured at the maximum transmission rate. |
Repeatability | ±0.1 | dB | The repeatability is defined over 100 cycles. |
Polarization-dependent loss | <0.2 | dB |
|
Wavelength-dependent loss | <0.3 | dB | WDL is measured within the range of CWL ± 20nm. |
Data delay | <25 | ns |
|
Optical power dynamic range | Dark to +27 | dBm |
|
Durability | >109 | Cycles | Design assurance |
Switching time (single channel) | <20 | ms | Design assurance |
Switching time (all channels) | <150 | ms | Design assurance |
Optical fiber type (single mode) | G.657A2 or equivalent standards |
| |
Case size | 2Urack(440X550x88) | mm |
|
Shell color | Grey (Pantone 432U) |
|
|
Connector type | LC/APCor LC/UPC |
| Customize |
Control interface | NETCONF, SNMPv3, TL1, Web GUI and REST API |
|
|
User interface | RJ45 Gigabit Ethernet |
|
|
Process interface | RS232 and USB |
|
|
Power consumption | <40 | W |
|

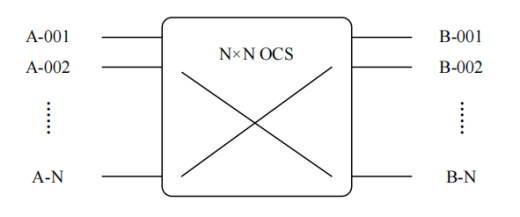

Functional diagram
Ordering info
ZG | Channel no. | CWL | Fiber type | Connector | Case |
64=64x64 | 1260=1260nm 1660=1660nm XX=others | G.657 A2 or equivalent standards | LC/APC LC/UPC | 2U |
