Definition

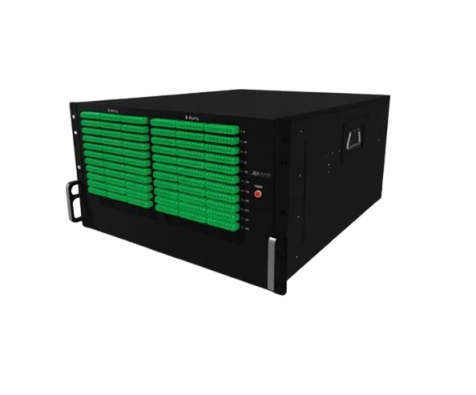

The 256X256 optical switch matrix is a super-large-scale and high-end optical switch device with 256 input ports and 256 output ports. It is specifically designed to handle extremely high bandwidth and complex optical signal switching requirements, and is capable of achieving flexible, high-speed, and non-blocking switching of optical signals between any input port and any output port. It provides powerful switching capabilities for modern large-scale optical communication systems.
Feature
Non-blocking circuit switch
Low insertion loss
Fast switching
Long lifespan
Excellent optical stability and repeatability
User-friendly graphical user interface
Application
Optical network management
Data center interconnection
AI network
Specification
Operation environment
Parameter | Min | Max | Unit | Remarks |
Operating Temperature | 5 | 45 | °C |
|
Storage Temperature | -40 | 70 | °C |
|
Operating Relative Humidity | 5 | 95 | % | Under non-condensing conditions, the moisture content shall not exceed the industrial standard of 0.024 kg of water per kg of dry air |
Storage Relative Humidity | 5 | 95 | % |
Specification
Parameters | Spec | Unit | Note |
Number of channels | 256x256 |
|
|
Operation wavelength range | 1260-1660 | nm |
|
Typical insertion loss | 2.0 | dB |
|
Maximum insertion loss | 3.0 | dB |
|
Crosstalk | <-50 | dB |
|
Return loss | >45 | dB |
|
Connection stability | ±0.2 | dB | Stability and repeatability are measured at the maximum transmission rate. |
Repeatability | ±0.1 | dB | The repeatability is defined over 100 cycles. |
Polarization-dependent loss | <0.2 | dB |
|
Wavelength-dependent loss | <0.3 | dB | WDL is measured within the range of CWL ± 20nm. |
Data delay | <25 | ns |
|
Optical power dynamic range | Dark to +27 | dBm |
|
Durability | >109 | Cycles | Design assurance |
Switching time (single channel) | <20 | ms | Design assurance |
Switching time (all channels) | <150 | ms | Design assurance |
Optical fiber type (single mode) | G.657A2 or equivalent standards |
| |
Case size | 2Urack(440X550x88) | mm |
|
Shell color | Grey (Pantone 432U) |
|
|
Connector type | LC/APCor LC/UPC |
| Customize |
Control interface | NETCONF, SNMPv3, TL1, Web GUI and REST API |
|
|
User interface | RJ45 Gigabit Ethernet |
|
|
Process interface | RS232 and USB |
|
|
Power consumption | <80 | W |
|
Functional diagram
Ordering info
ZG | Channel no. | CWL | Fiber type | Connector | Case |
256=256x256 | 1260=1260nm 1660=1660nm XX=others | G.657 A2 or equivalent standards | LC/APC LC/UPC | 6U |
