Definition

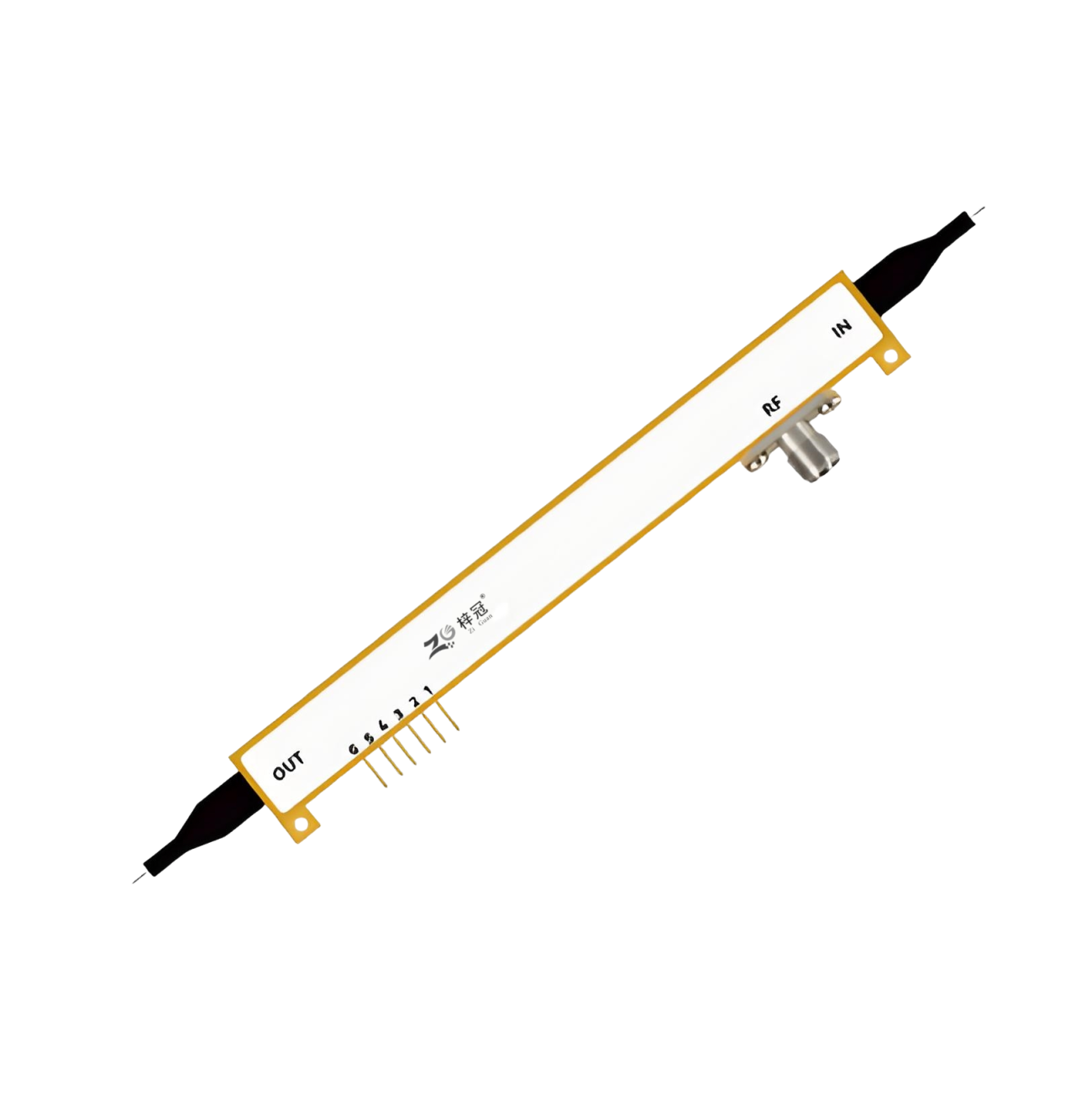

The 10GHz ultra-long phase modulator is a high-performance phase modulator designed specifically for the C-band, manufactured using lithium niobate (LiNbO3) material. This modulator boasts a 10GHz bandwidth and enables efficient phase modulation at low drive voltages, making it suitable for high-speed, high-capacity optical communication and optical signal processing systems. It is fabricated using annealed proton-switched (APE) waveguides and employs polarization-maintaining (PM) input and output fibers to ensure stable polarization of the optical signal during transmission.
Feature
X-cut APE process
High extinction ratio
High optical power handling capability
Polarization-maintaining input/output
Application
Coherent communication
Optical chirp
Optical sensing
Frequency modulation spectroscopy
Frequency shifting
Laser linewidth broadening
Specification
Parameter | Unit | Value |
Material |
| LiNbO3 |
Crystal Orientation |
| X-cut, Y-transmission |
Waveguide process |
| APE Annealed Proton Exchange |
Maximum optical power | mW | 100mW max. |
Operating wavelength | nm | 1525-1570 |
Insertion loss | dB | ≤-4dB，3dB typ. |
Return loss | dB | ≤-40 |
Chip PER | dB | ≥60 |
Fiber pigtail PER | dB | ≥20 |
S21 (3dB) | GHz | ≥7GHz，8GHz typ. |
S11 | dB | ≤-9 |
Vpi | V | 7.2V typ.@1GHz，≤8V |
RF input voltage | dBm | ≤+25dBm |
Impedance | Ω | 50 |
Operating temperature | ℃ | 0 ~+70 |
Storage temperature | ℃ | -40 ~+80 |
Working humidity | % | 0~90 |
Optical fiber model |
| Panda，PM15-U40D |
Casing specification | μm | 900 |
Connector |
| PM FC/APC，key aligned with the slow axis. |
RF connector |
| K-type female |
Mechanical dimension | mm | 120×12.05x8.5 |

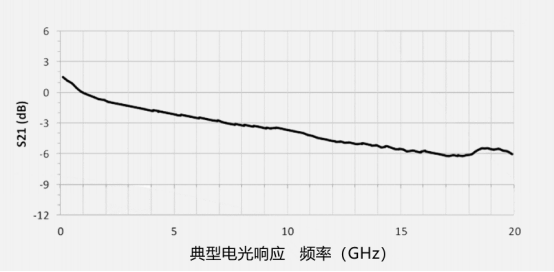

Testing data

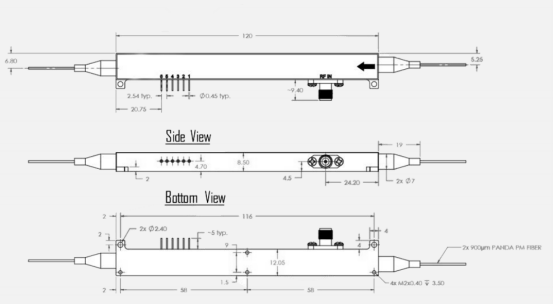

Dimension
