Wavelength-tunable Picosecond Lasers

Wavelength-tunable Picosecond Lasers: The laser is based on a conventional picosecond laser, but with the addition of a tunable wavelength design. It achieves a wavelength tunable range of 1540~1560nm.; Product Consultation

Detailed information

Definition

The laser is based on a conventional picosecond laser, but with the addition of a tunable wavelength design. It achieves a wavelength tunable range of 1540~1560nm.

Feature

Pulse width customizable from 1~100ps

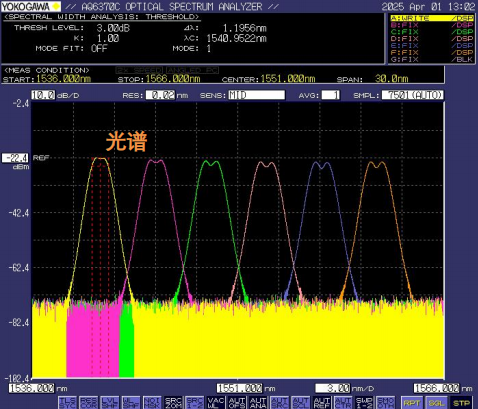

Wavelength tunable from 1540~1560 nm

Self-starting and maintenance-free

High stability with full polarization protection

Application

Optical frequency combs

Supercontinuum

Terahertz waves

Ultrafast laser phenomena

Specification

Parameter	Unit	Type	Note
wavelength	nm	1540~1560	adjustable
Spectral width	nm	1
Pulse width	ps	<30	customize
Output power	mW	1~120	customize
Power instability	-	< ±1%	@6hours
Repetition frequency	MHz	10~30	customize
Repetition frequency instability	Hz	100~1000	Optional adjustable frequency function
Single pulse energy	nJ	0.1~1
Polarization state	-	linear polarization
Fiber connector	-	PM1550，FC/APC	Slow axis alignment
Warm-up time	min	< 0.5

Electrical parameter

Parameter	Spec
Control method	Touchscreen /RS232
Synchronous signal interface	SMA
Power supply	AC 100~240V , 30W
Size or code	B2: 255×322×115mm
Operating temperature	5 ~ 35°C
Operating humidity	0~70%
