Definition
The laser utilizes high-performance rare-earth fiber as the working medium, combined with high-precision dispersion compensation technology and an active servo system, to achieve stable output of 1560nm picosecond pulsed laser light.
Feature
Extremely narrow laser pulse
High peak pulse power
Pulse width 1~100ps
Wavelength 1530~1560 nm
Self-starting and maintenance-free
High stability with full polarization
Application
Optical frequency comb
Optical frequency combs
Super-continuum
Terahertz waves
Ultra-fast laser phenomena
Specification
Parameter | Unit | Type | Note |
wavelength | nm | 1540~1560 | adjustable |
Spectral width | nm | 0.5~50 |
|
Pulse width | ps | 1/10/50/100 | customize |
Output power | mW | 1~100 | customize |
Power instability | - | < ±1% |
|
Repetition frequency | MHz | 10~1000 | Optional adjustable frequency function |
Repetition frequency instability | Hz | ＜100 | @1hour |
Single pulse energy | nJ | 0.1~1 |
|
Polarization state | - | linear polarization |
|
Fiber connector | - | PM1550，FC/APC | Slow axis alignment |
Warm-up time | min | < 0.5 |
|
Electrical parameter
Parameter | Spec |
Control method | Touchscreen /RS232 |
Synchronous signal interface | SMA |
Power supply | AC 100~240V , 30W |
Size or code | B2: 255×322×115mm |
Operating temperature | 5 ~ 35°C |
Operating humidity | 0~70% |

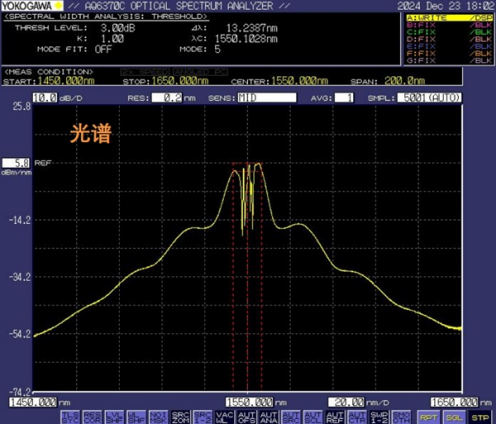

Spectrogram

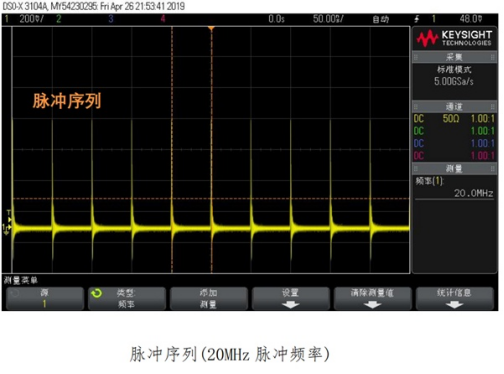

Impulse sequence

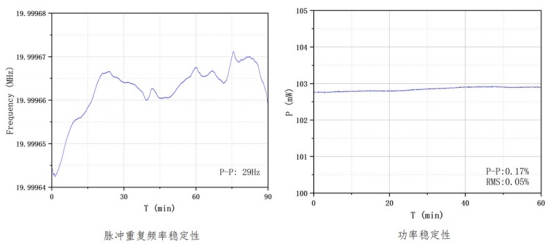

Repetition frequency stability and power stability

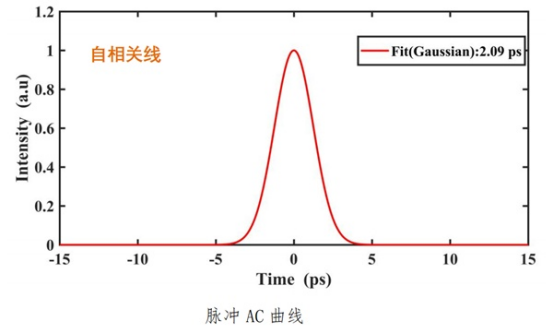

Autocorrelation line and laser power
Ordering info
ZG | CWL(nm) | Pulse width(fs) | Power(mW) | Repetition frequency (MHz) | Output | Package |
1560 | 1/10/50/100 | 10/50/100 | 20/80/100 | SM PM | Benchtop/Module |
