Definition

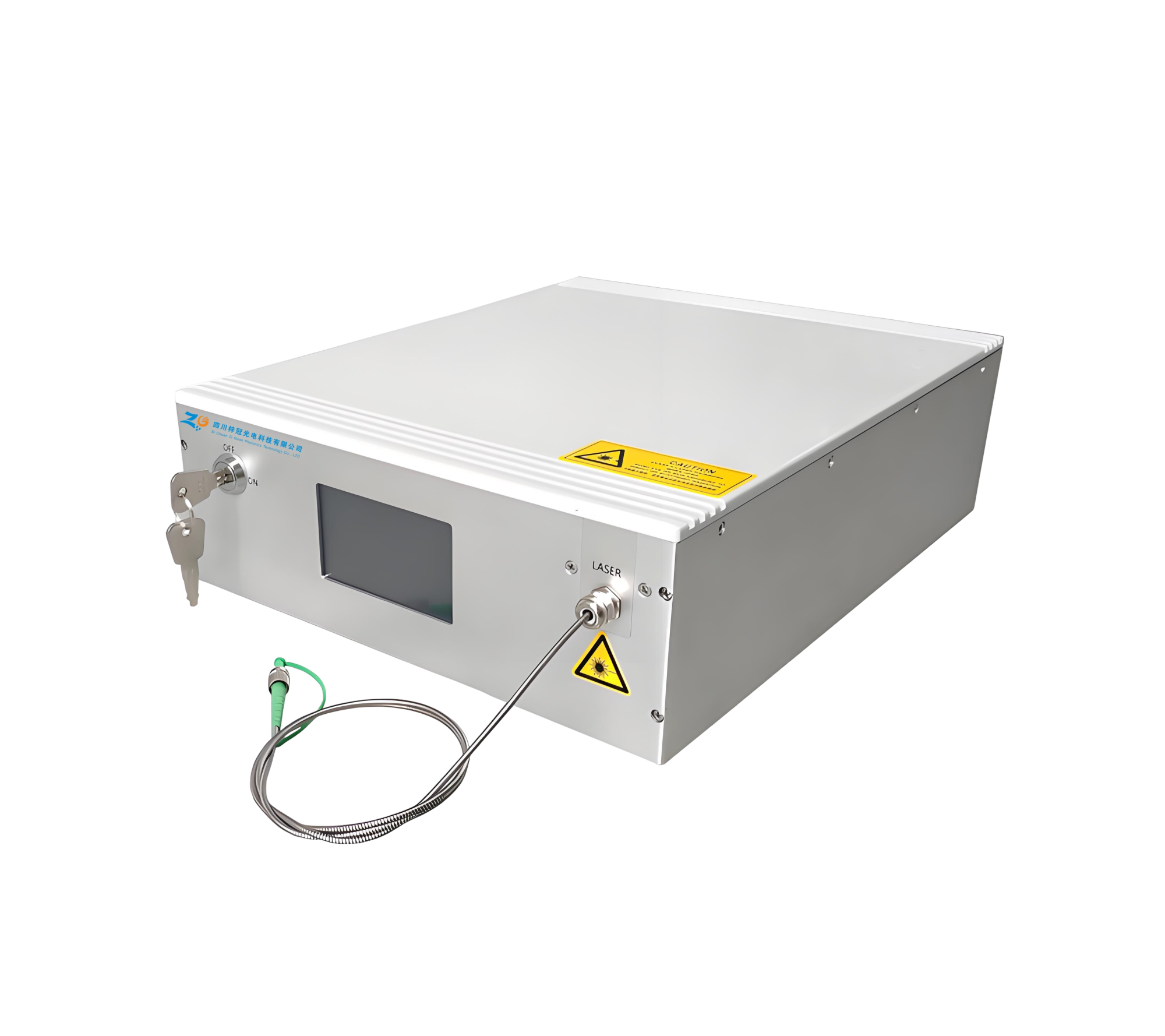

This laser is a high-performance, medium-power 1.5µm ultrashort pulse fiber laser. This product features a flexible architecture, a wide range of customizable parameters, and compatibility with both picosecond and femtosecond pulse versions, with a maximum output power exceeding 500 mW. Based on a fully polarization-maintaining fiber structure, it integrates a unique "Smart-Lock" manufacturing process and diagnostic technology, ensuring long-term stability and reliability.
Feature
Customizable wavelength
High peak power
Linear polarization
Diffraction-limited beam quality
High stability and reliability
Application
Terahertz generation
Two-photon polymerization and imaging
Precision measurement
Scientific research platform construction
Specification
Parameter | Unit | Value |
Central wavelength | nm | 1560±10 |
Pulse width | fs | <100 fs/<15 ps |
Average power | mW | >200 mW/>500mW |
Spectral line-width | nm | >20nm/<2 nm |
Repetition frequency | MHz | 80 |
Power stability |
| <0.5% RMS (12hrs@25°C) |
PER | dB | >20 |
Output |
| PM1550 fiber，FC/APC connector |
Power supply | V | 100-240 VAC |
Working temperature | ℃ | 15-35℃ |
Work humidity |
| 20~80% (non-condensing) |
Overall dimensions |
| 390x298x115mm |
Cooling method |
| Air-cooled |

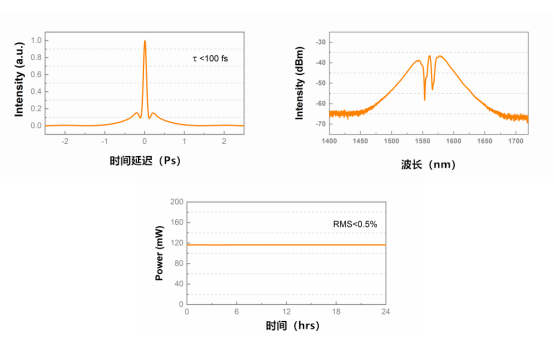

Test data

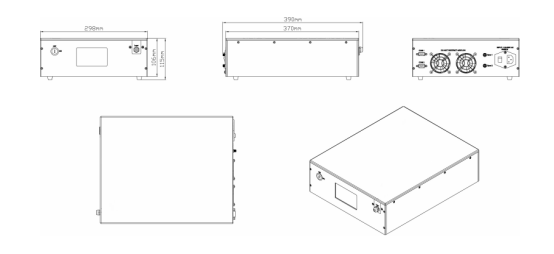

Dimension
Ordering info
ZG | CWL | Pulse width | Average power | Spectral line-width |
1560±10 | <100 fs <15 ps | >200 mW >500mW | >20nm <2 nm |
