Definition

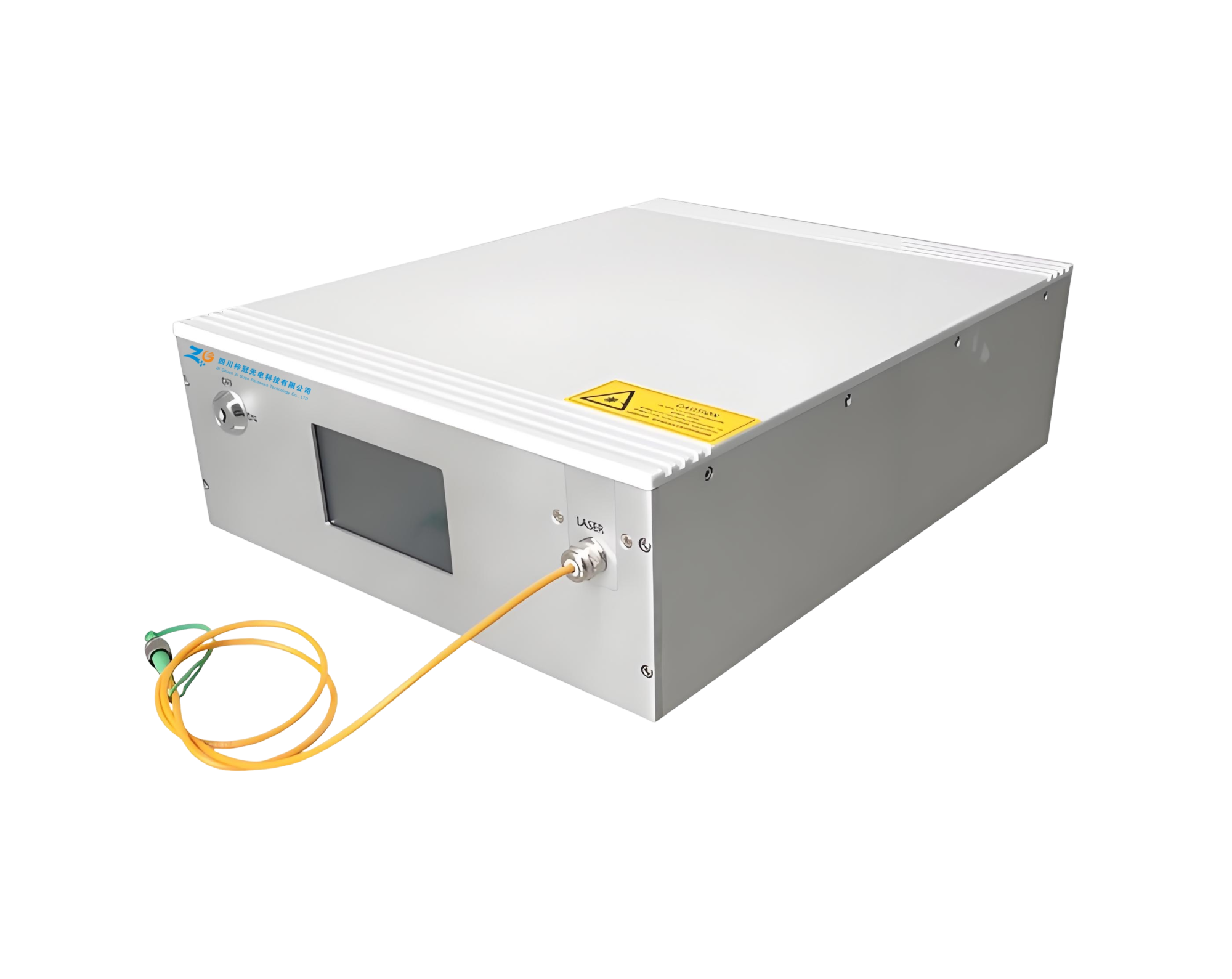

This laser is a high-performance, medium-power laser based on a fully polarization-maintaining fiber structure, capable of generating pulse widths in the picosecond (ps) to femtosecond (fs) range with a center wavelength around 2 micrometers (specifically 1970±10 nm). It is based on nonlinear effects in the fiber and mode-locking techniques. Through specific fiber design and pumping methods, nonlinear optical effects in the fiber, such as self-phase modulation and cross-phase modulation, are excited, combined with mode-locking techniques to generate ultrashort pulses.
Feature
customizable wavelength
Pulse width compatible with ps/fs
All PM fiber structure
High peak power
Diffraction-limited beam quality
Application
Multiphoton spectroscopy
Nonlinear optics
Silicon photonics
Biomedical imaging
Mid-infrared frequency conversion
Specification
Parameter | Unit | Value |
Central wavelength | nm | 1970±10 |
Pulse width | fs | <200 fs/<15 ps |
Average power | mW | >200 mW/>4W |
Spectral line-width | nm | 2.5 nJ/50nJ |
Repetition frequency | MHz | 80 |
Power stability |
| <0.5% RMS (12hrs@25°C) |
PER | dB | >20dB |
Output |
| PM1550 fiber，FC/APC connector(200fs); Spatial light output(15 ps) |
Power supply | V | 100-240 VAC |
Working temperature | ℃ | 15-35℃ |
Work humidity |
| 20~80% (non-condensing) |
Overall dimensions |
| 390x298x115 |
Cooling method |
| Air-cooled |

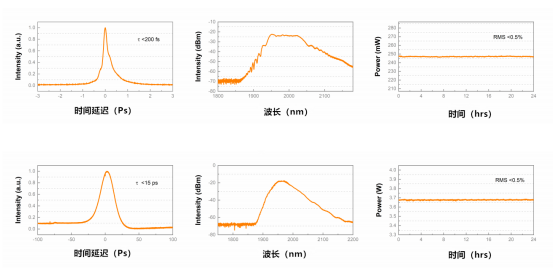

Test data

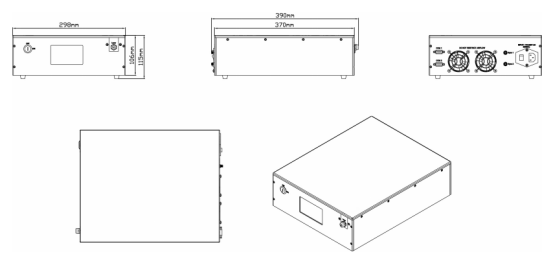

Dimension
Ordering info
ZG | CWL | Pulse width | Average power | single pulse energy |
1970±10 | <200 fs <15 ps | >200 mW >4W | 2.5 nJ 50nJ |
