Definition

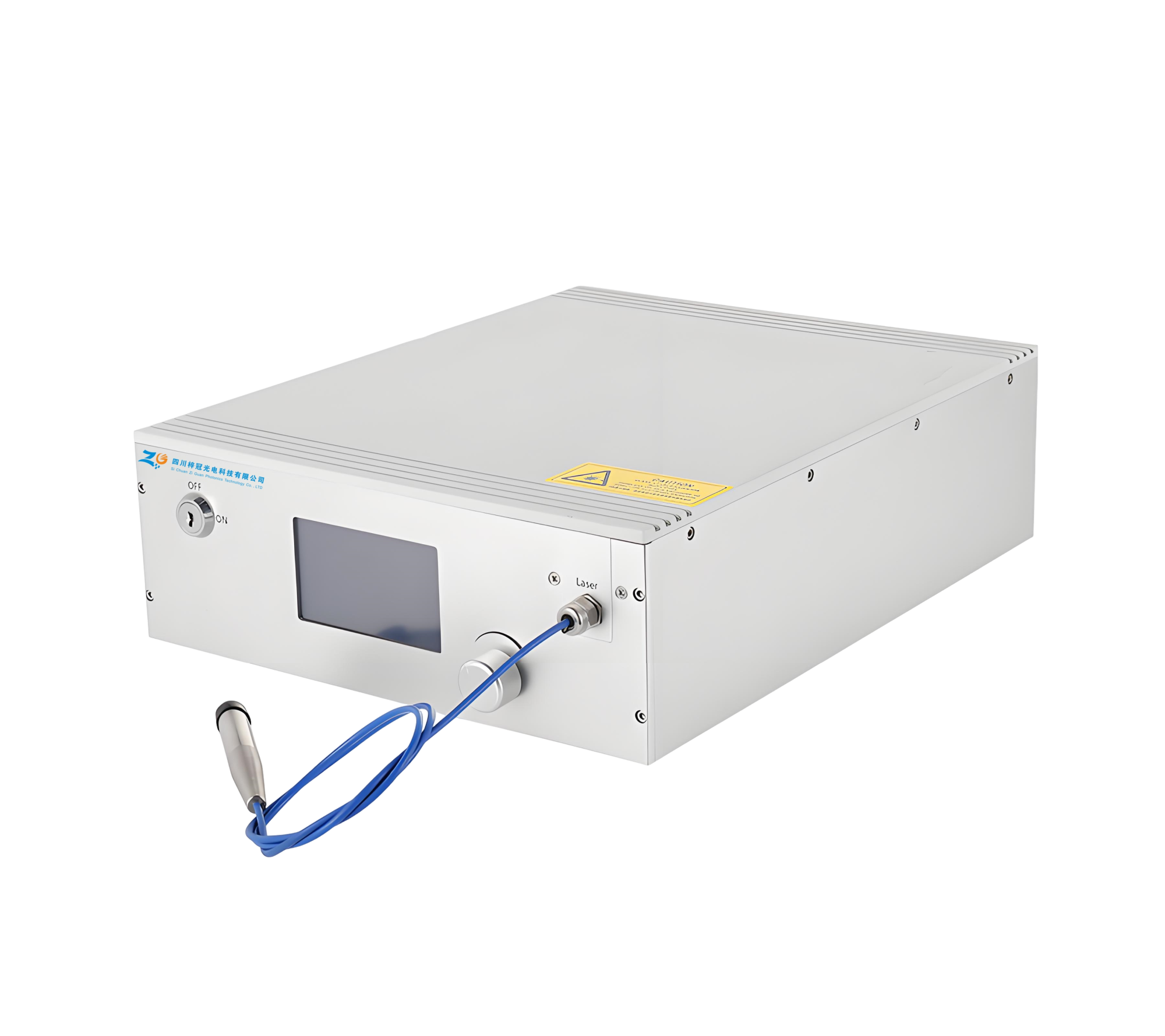

This laser is a high-performance, medium-power 1µm ultrashort pulse fiber laser. Based on a fully polarization-maintaining fiber structure, it boasts a maximum output power exceeding 1W. Its flexible architecture allows for customization of pulse width and repetition frequency to meet diverse research and industrial application needs.
Feature
ps-level
high output power
All PM fiber structure
high stability and reliability
customizable wavelength
diffraction-limited beam quality
pplication
High-energy laser amplification
Ultra-continuous generation
Laser ranging
Pump detection
OPA pump
Specification
Parameter | Unit | Value |
Central wavelength | nm | 1064±2 |
Pulse width | fs | <1.5 |
Average power | mW | <15 |
Spectral line-width | nm | 30MHz(20-50 MHz customizable) |
Repetition frequency | MHz | >1 |
Power stability |
| <0.5% RMS (12hrs@25°C) |
PER | dB | >20 |
Output |
| With collimator, spot diameter<2mm |
Power supply | V | 100-240 VAC |
Working temperature | ℃ | 15-35℃ |
Work humidity |
| 20~80% (non-condensing) |
Overall dimensions |
| 393x298x115 |
Cooling method |
| Air-cooled |

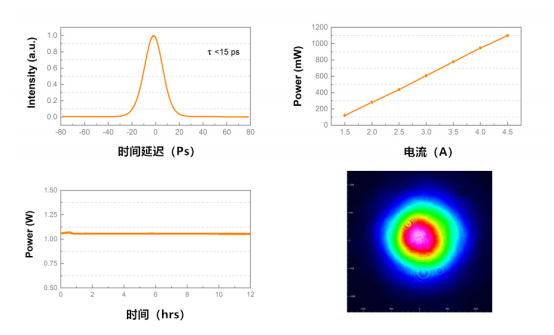

Test data

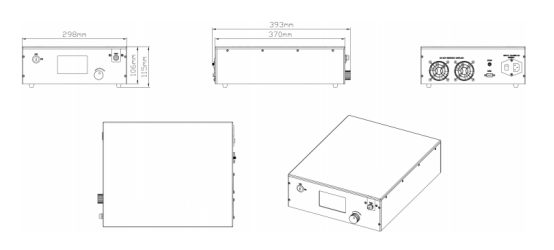

Dimension
